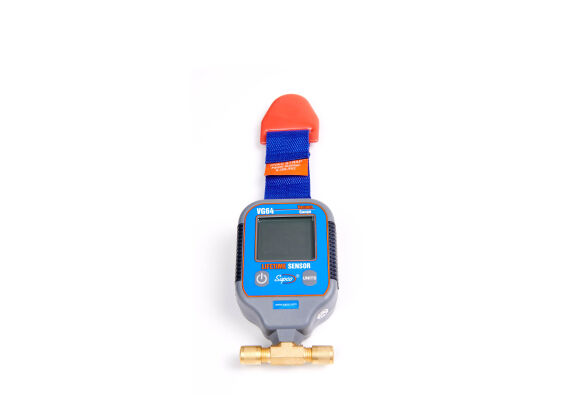

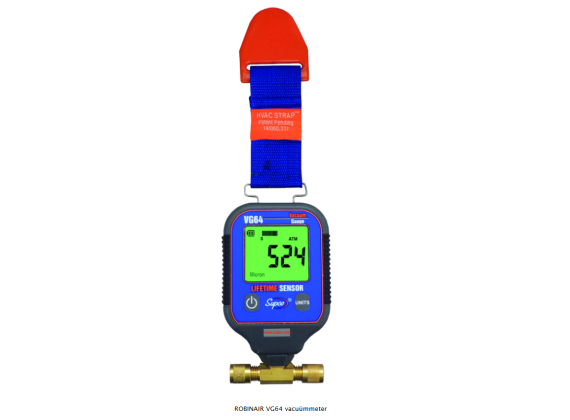

A durable self-contained battery powered vacuum gauge with LCD readout. Allows reading from 12000 to 0 microns. The unique design of the RA VG-64 allows in-line connection through the system or directly at the vacuum pump.
Features
- Easy to use
- LCD readout allows easy readings
- Sensor type: Thermistor
- 1/4" connections
- Power supply: 9 V Battery
- Rugged plastic case
- Convenient built-in hanger
- Connections provides quick cleaning and drying of sensor
Specifications
Dimension135 x 75 x 40 mm
Fitting Size 1/4" MFL
Power supply 9 V Battery
Sensor Type Thermistor
Response Time 0,5 sec
Units Micron, psi, InHg, Millibar, Pascal, Torr, Millitor
Battery Life Approx. 30 hours
Auto Power Off After 10 minutes of vacuum readings are above 12000 microns
Resolution 0-200: 1 micron 201-500: 5 micron 501-1000: 10 micron 1001-2000: 50 micron 2001-5000: 250 micron 5001-8000: 500 micron 8001-12000: 1000 micron
Accuracy ±10 % of reading
Maximum Pressure 20 bar/300 psi
Operating Temperature 2 °C to 52 °C
