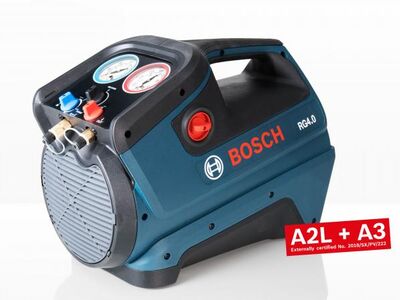

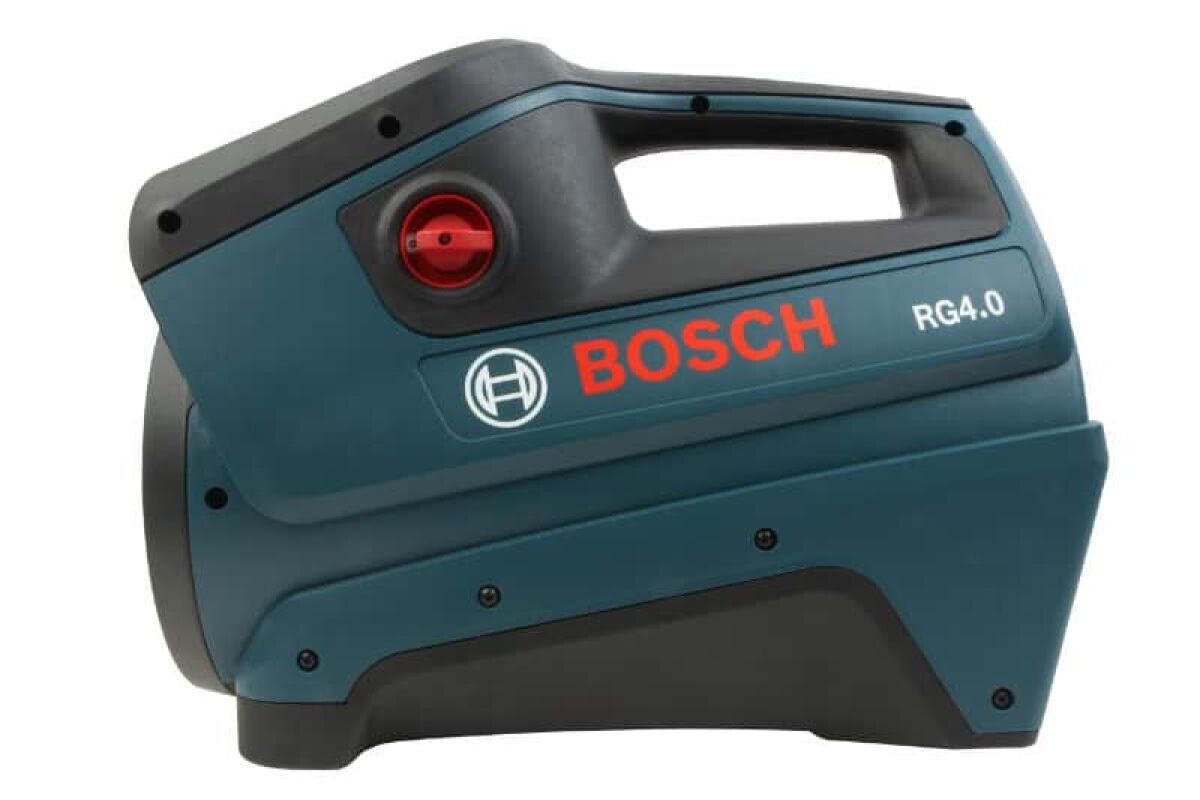

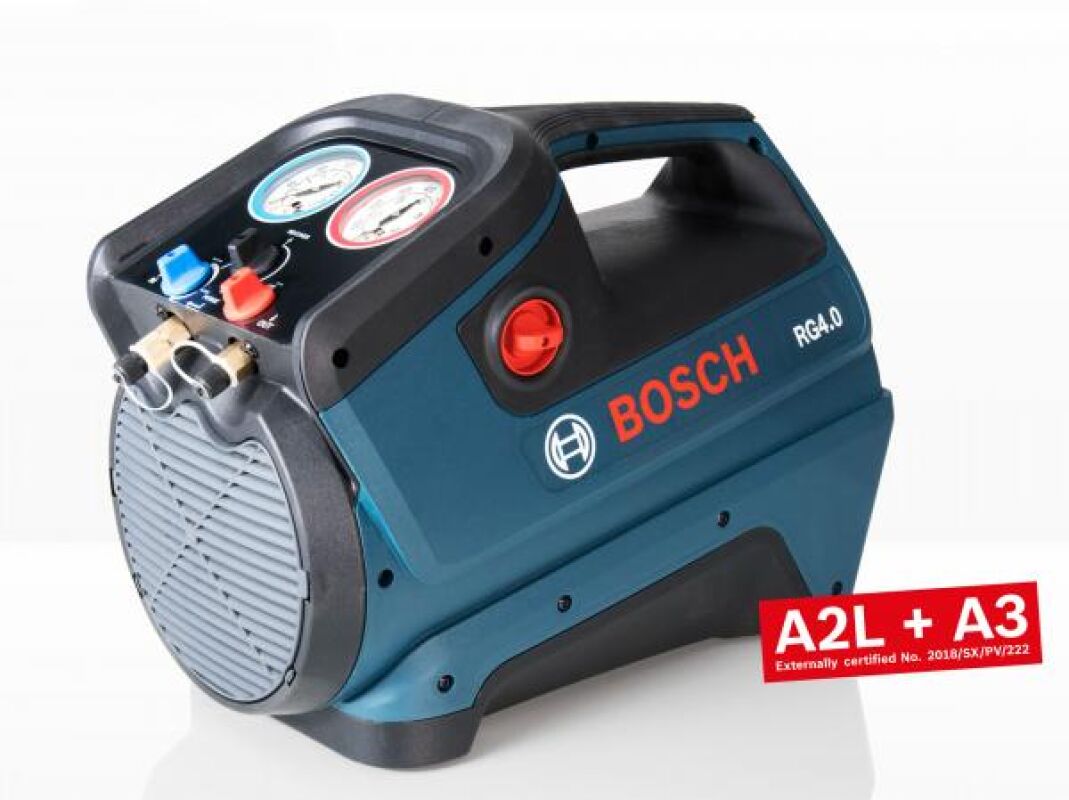

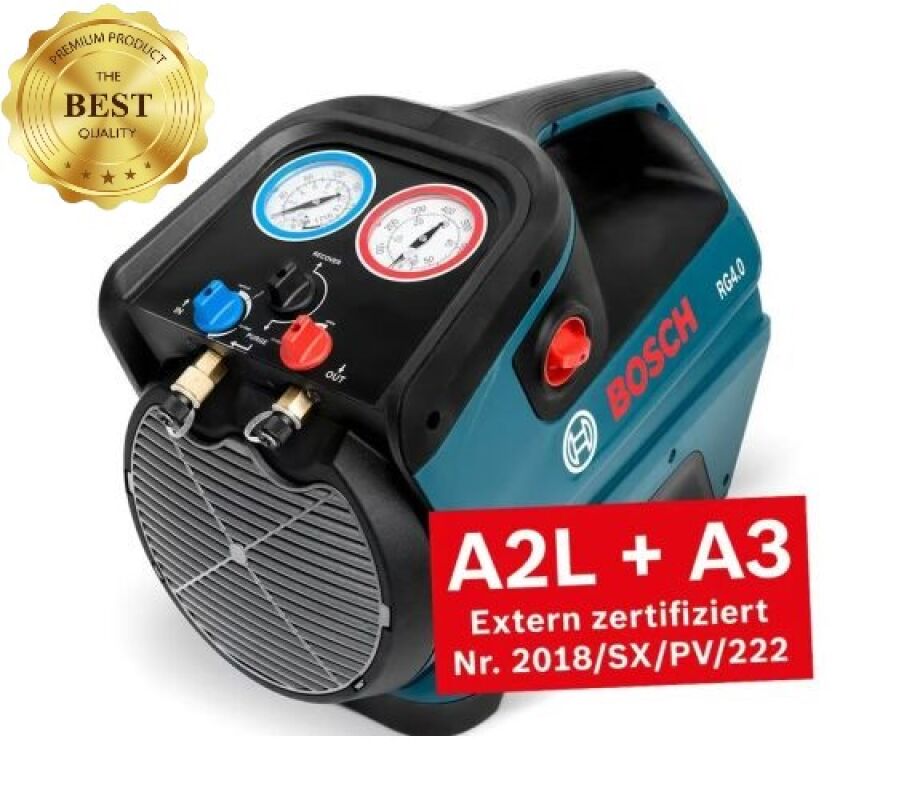

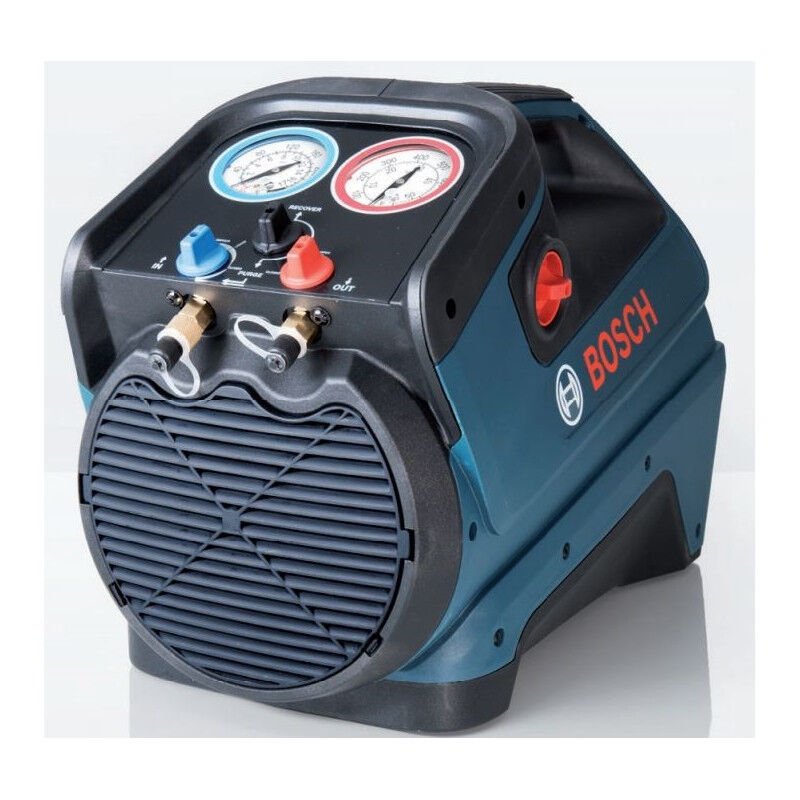

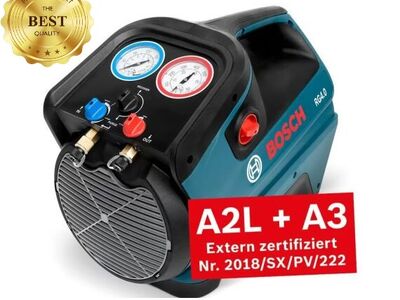

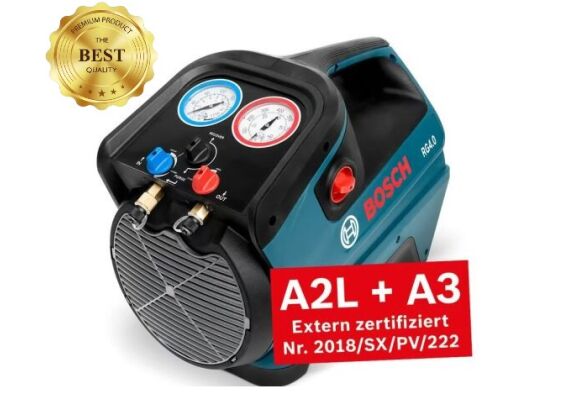

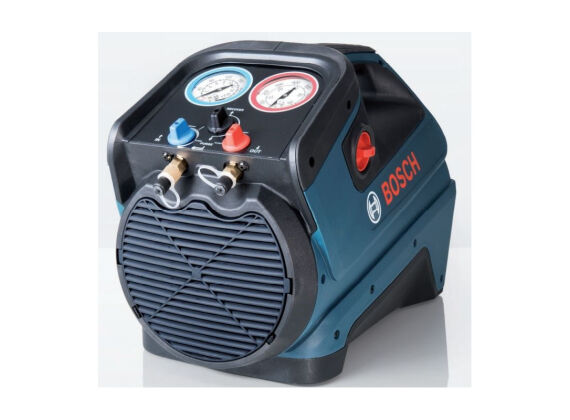

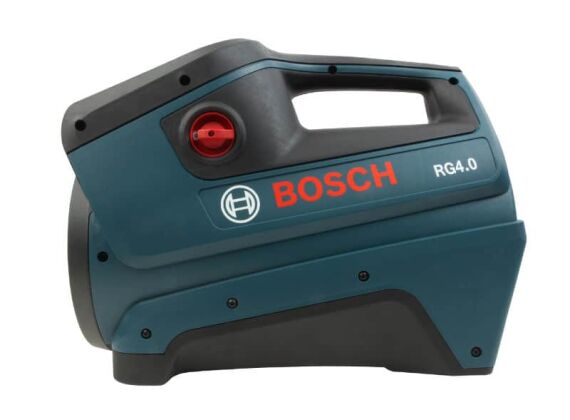

BOSCH A2L + A3 RG 4.0 RECOVERY UNIT (R290 R600) 1149,00

Professional industrial design

• Tool for professional applications.
• Robust and impact resistant.
• Stable and reliable operation.
• Single cylinder compressor stable, reliable and oilless.
• Handle over-molded with rubber (TPE) for a reliable grip.
• Bottom mount assembly and layout for enhanced serviceability.
• Protective cover keeps dirt away from gauges and controls.
• Electrical and refrigerant line connections on opposite ends.
• Specially designed mounts and feet to provide stability, noise and vibration isolation.
• High displacement electrical fan draws fresh air first through the condensor for improved recovery rates in extreme conditions.
• Low pressure switch for smooth operation. Cuts off when ideal vacuum level is reached thereby preventing unnecessary operation and reducing wear.
• Automatic reset HP cut-out protects the equipment and operator.
• Suitable for nearly all commonly used refrigerants incl. A2L + A3.

LINK BOSCH

• Rated frequency50 /60 Hz
• Power1/2HP / 360 Watt
• Rated currentRG 4.0A 5 A
• RG 4.0B 9 A
• Liquid capacity, maximum by push pull410,5 kg/hr
• Liquid capacity, maximum capacity rates122,1 kg/hr
• Gas capacity maximum10,7 kg/hr
• CompressorSingle cylinder, oil-less
• Weight14,6 Kg
• Circuit breakerRG 4.0A 8 A
• RG 4.0B 12 A
• Maximum working pressure 38,5 bar
• Dimensions (L x B x H)450 x 250 x 350 mm
• Safety deviceSafety pressure switch with automatic reset (38.5 bar)
• Sicherheitsdruckschalter mit automatischer Rückstellfunktion (38,5 bar / 550 psi)
• Pressostat de sécurité avec réinitialisation automatique (38,5 bar/550 psi)
• Operating ambient temperature range0 - 50 °C
• Suitable refrigerantsAHRI cat. / Kat. / cat. III, IV, V + A2L, A3
